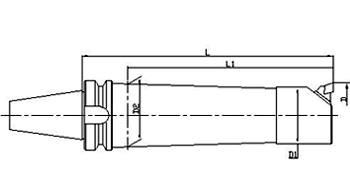

BT MAS - 403 MICRO-CUT BORING BAR WITH CARTRIDGE

TYPE	L	L1	D MIN.	D MAX.	D1	D2
BT-30	75	48	12.7	14.5	12	12
BT-30	75	48	14.5	19.5	13	13
BT-30	90	63	19	22.5	18	18
BT-30	105	78	22	29.5	20	20
BT-30	120	95	29	41	25	25
BT-30	120	95	38	50	35	35
BT-30	120	95	48	65	41	41

BT-40	105	60	12.7	14.5	12	12.5
BT-40	105	68	14.5	19.5	13	13.5
BT-40	120	83	19	22.5	18	18
BT-40	135	98	22	29.5	20	21
BT-40	150	116	29	41	25	27
BT-40	180	146	29	41	25	27
BT-40	150	113	38	50	35	36
BT-40	210	173	38	50	35	36
BT-40	150	113	48	65	41	46
BT-40	210	173	48	65	41	46
BT-40	150	123	62	90	54	60
BT-40	210	183	62	90	54	60
BT-40	150	120	82	110	67	60
BT-40	210	180	82	110	67	60
BT-40	150	120	100	140	85	60

BT-45	105	60	12.7	14.5	12	12.5
BT-45	105	68	14.5	19.5	13	13.5
BT-45	120	83	19	22.5	18	18
BT-45	135	98	22	29.5	20	21
BT-45	150	116	29	41	25	27
BT-45	180	146	29	41	25	27
BT-45	150	113	38	50	35	36
BT-45	210	173	38	50	35	36
BT-45	150	113	48	65	41	46
BT-45	210	173	48	65	41	46
BT-45	150	123	62	90	54	60
BT-45	210	183	62	90	54	60
BT-45	150	120	82	110	67	60
BT-45	210	180	82	110	67	60
BT-45	150	120	100	140	85	60

BT-50	120	60	12.7	14.5	12	12.5
BT-50	120	65	14.5	19.5	13	13.5
BT-50	135	85	19	22.5	18	18
BT-50	150	100	22	29.5	20	21
BT-50	150	100	29	41	25	27
BT-50	180	130	29	41	25	27
BT-50	165	115	38	50	35	36
BT-50	225	175	38	50	35	36
BT-50	165	122	48	65	41	40
BT-50	210	160	48	65	41	46
BT-50	255	205	48	65	41	46
BT-50	180	130	62	90	54	53
BT-50	240	185	62	90	54	60
BT-50	330	280	62	90	54	60
BT-50	165	116	82	110	67	67
BT-50	240	190	82	110	67	75
BT-50	315	272	82	110	67	75
BT-50	165	120	100	140	85	85
BT-50	240	197	100	140	85	84
BT-50	315	274	100	140	85	90
