Steel Holds (india) manufacaturers and exporters of complete range of machine tools accessories DIN-14 from Ludhiana, Punjab, India

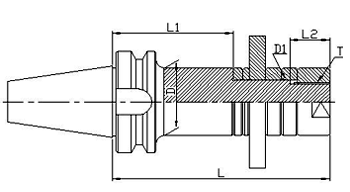

BT MAS - 403 SIDE CUTTER ADAPTOR

TYPE	D1	L1	L	L2	D	T
BT-30	10	60	107	12	18	M8X1.25
BT-30	16	60	107	16	26	M14X1.5
BT-30	22	60	112	22	34	M20X1.5
BT-30	22	75	127	22	34	M20X1.5

BT-40	16	60	106	16	26	M14X1.5
BT-40	22	60	112	22	34	M20X1.5
BT-40	22	75	127	22	34	M20X1.5
BT-40	22	120	172	22	34	M20X1.5
BT-40	27	75	133	28	41	M24X1.5
BT-40	27	120	178	28	41	M24X1.5
BT-40	32	90	152	32	47	M30X1.5
BT-40	22.22	75	127	22	34	M20X1.5
BT-40	22.22	120	172	22	34	M20X1.5
BT-40	25.4	75	133	28	41	M24X1.5
BT-40	25.4	120	178	28	41	M24X1.5
BT-40	31.75	90	152	32	47	M30X1.5

BT-45	16	60	106	16	26	M14X1.5
BT-45	22	60	112	22	34	M20X1.5
BT-45	22	75	127	22	34	M20X1.5
BT-45	22	120	172	22	34	M20X1.5
BT-45	27	75	133	28	41	M24X1.5
BT-45	27	120	178	28	41	M24X1.5
BT-45	32	90	152	32	47	M30X1.5
BT-45	22.22	75	127	22	34	M20X1.5
BT-45	22.22	120	172	22	34	M20X1.5
BT-45	25.4	75	133	28	41	M24X1.5
BT-45	25.4	120	178	28	41	M24X1.5
BT-45	31.75	90	152	32	47	M30X1.5

BT-50	22	90	142	22	34	M20X1.5
BT-50	22	135	187	22	34	M20X1.5
BT-50	27	90	148	28	41	M24X1.5
BT-50	27	135	193	28	41	M24X1.5
BT-50	32	90	152	32	47	M30X1.5
BT-50	32	135	197	32	47	M30X1.5
BT-50	40	90	160	40	55	M36X1.5
BT-50	40	135	205	40	55	M36X1.5
BT-50	22.22	90	142	22	34	M20X1.5
BT-50	22.22	135	187	22	34	M20X1.5
BT-50	25.4	90	148	28	41	M24X1.5
BT-50	25.4	135	193	28	41	M24X1.5
BT-50	31.75	90	152	32	47	M30X1.5
BT-50	31.75	135	197	32	47	M30X1.5
BT-50	38.10	90	160	40	55	M36X1.5
BT-50	38.10	135	205	40	55	M36X1.5
